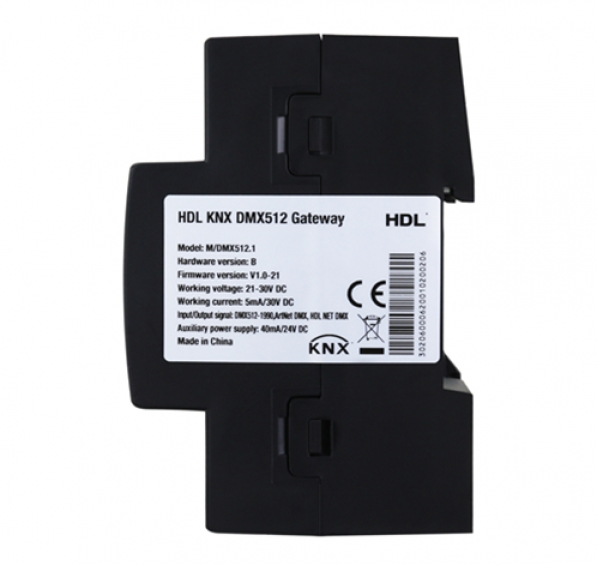

DMX512 Gateway

DMX512 Gateway belongs to HDL KNX/EIB series. The gateway supports two-way control, and can record, play and delete DMX programs. With recording time up to 4 hours, DMX512 Gateway can be widely used to control devices with built-in DMX protocol port for LED color control, for example, computer light, moving head light, laser light, etc ■ 3 working modes: DMX recorder mode, DMX dimming mode ( EIB to DMX) and DMX to EIB conversion mode (1bit, 1byte data point) . ■ Supported communication signal: DMX512-1990, ArtNet DMX, HDL NET DMX. ■ Store and playback up to 24 programs, with up to 4 hours recording time. ■ DMX dimming mode supports switching or dimming for up to 48 channels (controlling DMX device via KNX system available). ■ DMX to EIB conversion mode supports switching or absolute dimming for up to 48 channels (controlling KNX system via DMX signal available). ■ DMX output signal can be used to control devices with DMX protocol port for LED color control, for example, moving head light, laser light, etc. ■ DMX input control functions include: Sequence control, Scene control, Switch control, Relative dimming, Absolute dimming Basic Parameters Working voltage 21~30V DC Working current 5mA/30V DC Communication KNX/EIB Auxiliary power supply 40mA/24V DC The cable diameter of KNX terminal 0.6 - 0.8mm Input / Output signal DMX512-1990, ArtNet DMX, HDL NET DMX Terminals used for Line In/ Line Out 1~2.5mm2 cable External Environment Working temperature -5℃~45℃ Working relative humidity ≤90% Storage temperature -20℃~60℃ Storage relative humidity ≤93% Specifications Dimensions 72mm×90mm×64mm Net weight 189g Housing material Nylon Installation 35mm DIN rail installation Protection rating (Compliant with EN 60529) IP20
