KNX Source 7

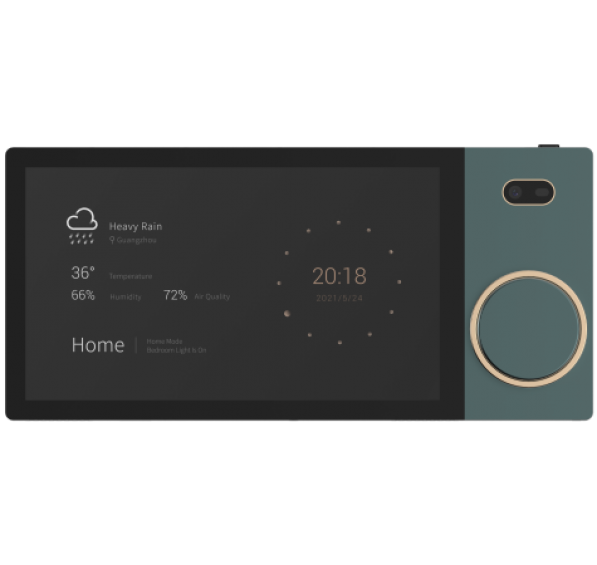

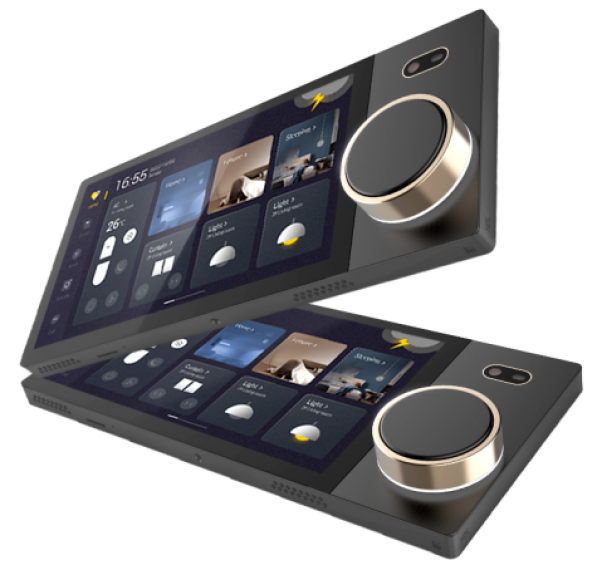

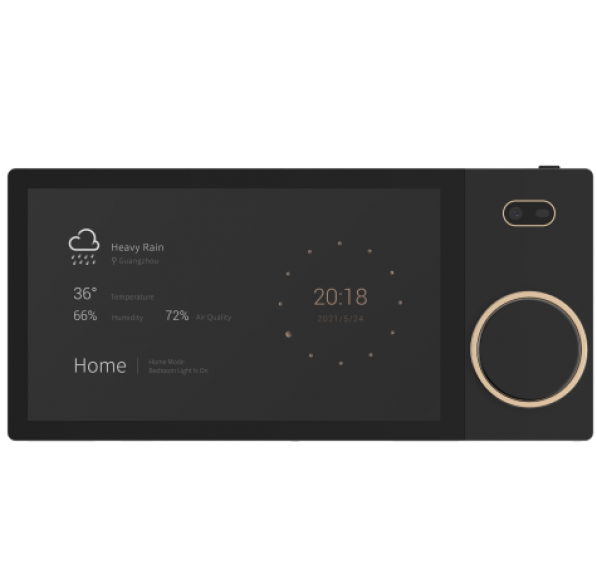

Source 7 (hereinafter referred to as the “product” or “device”) is a versatile smart panel with multiple functions. Equipped with a 7-inch capacitive touch screen, this product is suitable for controlling home automation through its interactive interface and knob. Upon proper installation and commissioning, end users can easily and conveniently control various aspects of their home, including lighting, curtains, air conditioners, floor heating, fresh air, music, and scenes. Key Functions: Compatible with gateway function Knob-operated control, including turn clockwise/counter-clockwise, short press, long press Temperature & humidity monitoring: built-in temperature & humidity sensor for monitoring real-time environment status. Proximity detection: Built-in proximity sensor for detecting human motion. Once the sensor detects near human motion, the touch screen automatically wakes up. It is a MUST to make the device connect with power interface. Power consumption (for Source 7 with power interface) ＜12W Input voltage Zigbee interface: 100 - 240V AC, 50/60Hz Buspro interface: 18 - 28V DC KNX interface: 21 - 30V DC KNX auxilary voltage 18 - 28V DC Output channel Zigbee / Buspro / KNX interface: 2CH, 5A/CH Resistive load: ≤660W/CH Capacitive load: ≤200W/CH Communication protocol HDL LINK, WiFi, RJ45 Master chip PX30 Storage capacity 2+8GB Operating frenquency 2.4GHz, 5GHz Indoor communication distance (barrier-free) ≤50m Operating system Android Ethernet interface RJ45 TF card Max. 64GB Touch screen 7-inch capacitive touch screen, available for multi-touch; Resolution: 1280*720 Knob Users can turn the knob to adjust the light brightness, curtain open/close percentage, media volume, temperature, or fan speed. Knob-operated control: turn clockwise/counter-clockwise, short press, long press. The knob lighting is with RGB lamp beads. Camera 5-megapixel camera, which can be manually blocked or unblocked through the slider. Microphone Four microphones are located at the top of the touch screen. The voice detecting range is within 3m around the touch screen. Speaker Dual speaker, 0.8W*2 Proximity sensor Once the sensor detects near human motion, touch screen automatically wakes up. The detecting range is within 15cm around the touch screen. Temperature & humidity sensor Real-time monitor environment status Working temperature -5°C ~ 45°C Working relative humidity ≤90%RH, non-condensed Storage temperature -20°C ~ 60°C Storage relative humidity ≤93%RH Specifications: Dimensions (W X H X D) 219.2×102×25.6mm (without power interface, see Figure 4) 219.2×102×54.8mm (with power interface) Net weight 408g (with bracket; without power interface) Housing material PC Installation Wall box IP degree (compliant with EN 60529) IP20 CMIIT ID 2023AP2281
